If your Chevy Silverado gauges not working is the reason you ended up on this page, you are not alone. This is one of the most common complaints from 2003-2006 GM truck and SUV owners, and it has been happening for over 20 years now. The speedometer stops moving, the fuel gauge reads empty on a full tank, or the entire instrument cluster goes dark for no apparent reason.
The good news is that this is a well-understood problem with a proven fix. The bad news is that every single 2003-2006 GM full-size truck and SUV uses the same cluster design, and they all develop the same failures eventually. This guide covers what goes wrong, why it happens, and how to fix it the right way.
Which Vehicles Are Affected?

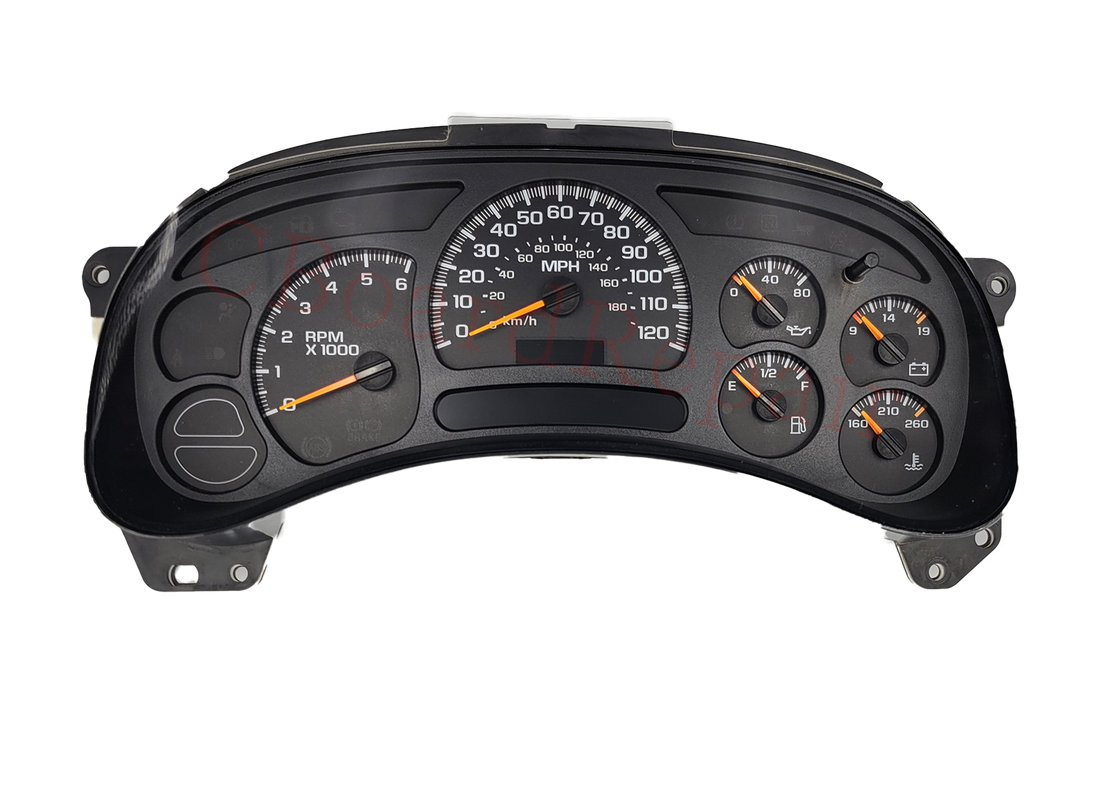

Every full-size truck and SUV GM built on the GMT800 platform from 2003 to 2006 uses the same basic instrument cluster. That means all of the following vehicles share the same failure-prone design:
- 2003-2006 Chevrolet Silverado 1500, 2500, and 3500
- 2003-2006 Chevrolet Tahoe
- 2003-2006 Chevrolet Suburban 1500 and 2500
- 2003-2006 Chevrolet Avalanche
- 2003-2006 GMC Sierra 1500, 2500, and 3500
- 2003-2006 GMC Yukon and Yukon XL
It does not matter whether your truck is a base work model or a fully loaded LT or Denali. The cluster hardware is the same across all trim levels. The stepper motors, the display, and the circuit board are identical. If you drive one of these vehicles long enough, you will almost certainly deal with at least one cluster failure.
We offer dedicated repair services for each model: Silverado cluster repair, Tahoe cluster repair, Suburban cluster repair, Avalanche cluster repair, and Sierra and Yukon cluster repair.
Common Instrument Cluster Symptoms
The symptoms can show up one at a time or all at once. Here is what to look for.
Gauges Stuck, Fluttering, or Reading Wrong
This is the most common complaint. Your speedometer, tachometer, fuel gauge, or temperature gauge stops responding, gets stuck at zero, or starts reading completely wrong. You might see the needle flutter or bounce erratically while driving. Some owners notice one gauge fail first and then watch the others follow over the next few weeks or months.
Speedometer Stuck at Zero or Pegged Past Max
The speedometer either sits at zero no matter how fast you are going, or it pins itself past the maximum mark and stays there. This is one of the more dangerous symptoms because you have no reliable way to monitor your speed. If your 2005 Chevy Silverado speedometer is not working, a failed stepper motor inside the cluster is almost certainly the cause.
Gas Gauge Reading Empty When Full (or Vice Versa)
You just filled up the tank, but the fuel gauge still shows empty. Or it reads full when you know you are running low. This leads to running out of gas unexpectedly or constantly second-guessing your fuel level. Before blaming the fuel sending unit in the tank, check whether your other gauges are also misbehaving. If they are, the cluster is the problem, not the sender.
Odometer Display Dim or Completely Dead
The digital display that shows your mileage, trip odometer, and other readouts becomes too dim to read or goes blank entirely. It might flicker back to life in cold weather and disappear when the truck warms up. This is a solder joint and display driver failure on the cluster circuit board.
PRNDL (Gear Indicator) Display Blank
The gear indicator that shows you whether you are in Park, Reverse, Neutral, Drive, or Low goes blank. This can fail independently from the odometer display or at the same time. Either way, it is annoying and makes the truck feel unreliable.
Backlighting Dim or Failed
The cluster backlighting becomes dim, uneven, or goes out completely. At night, you cannot read your gauges at all. Sections of the cluster might be darker than others, or the whole thing might look washed out and faded compared to how it looked when the truck was new.
Battery Drain from a Faulty Cluster
A failing instrument cluster can draw current even when the vehicle is off. If you keep finding a dead battery with no obvious cause, and you have already ruled out the alternator, the cluster is worth investigating. This is an often-overlooked parasitic drain source on these trucks.
Scrolling Language Display
Some owners report the display cycling through different languages on its own. Instead of showing your mileage, the screen scrolls through French, Spanish, and other language options repeatedly. This is a circuit board issue related to the same failures that cause the other display symptoms.
What Causes These Problems?
All of these symptoms come from the same handful of component failures inside the cluster. This is not a mystery, and it is not something owners are causing through misuse. It is a design flaw.
Stepper Motor Failure
The number one cause is failed GM instrument cluster stepper motors. Every gauge needle in the cluster (speedometer, tachometer, fuel, temperature, oil pressure, and voltage) is driven by a small motor called a stepper motor. GM used X27.168 stepper motors in these clusters, and they are notorious for wearing out.
These motors contain tiny plastic gears and a very fine coil. After years of heat cycling, the internal gears strip and the coil weakens. When that happens, the gauge either stops moving entirely, gets stuck in the wrong position, or starts fluttering. The motors do not all fail at once, which is why you might see your speedometer go first and your fuel gauge follow a few months later.
Display Component Degradation
The digital display for the odometer and PRNDL indicator uses components that degrade with age and heat exposure. The driver chips and connection points weaken over time, causing the display to dim, flicker, or go blank. This is a separate failure from the stepper motors but equally common.
Solder Joint Failures from Heat Cycling
The cluster sits behind the dashboard where temperatures swing dramatically. Every time you start the engine, the board heats up. Every time you shut it off, it cools down. After thousands of these cycles over 20 years, the solder joints that connect components to the circuit board crack. Cracked solder joints create intermittent connections that explain why some symptoms come and go with temperature.
None of this is caused by the owner. It is a known engineering limitation of the components GM chose for this generation of clusters.
Repair vs. Replacement: Which Is Better?
When your cluster fails, you have a few options. Here is why repairing your original cluster is the smartest move.
The Problem with Buying a Used or Remanufactured Cluster
A used cluster from a salvage yard is the same age as yours. It has the same stepper motors, the same display components, and the same solder joints that have been through just as many heat cycles. You are essentially buying someone else's problem that has not failed yet.
On top of that, a used cluster from a different vehicle will show that vehicle's mileage on the odometer. In most states, installing a cluster with the wrong mileage creates a legal headache. You would need a dealer to reprogram the correct mileage, which costs time and money.
Why Repairing Your Original Cluster Is the Better Option
When we do a silverado instrument cluster repair or any GMT800 cluster repair, we replace all seven stepper motors inside the cluster, not just the ones that have already failed. The others are on borrowed time, and replacing them all at once means you will not be back in six months with a different gauge going out.
Your original mileage stays on the odometer because it is your original cluster. No reprogramming is needed. You plug it back in and drive. Our chevy gauge cluster repair service also addresses the display and solder joint failures, so everything comes back fully functional.
Model-by-Model Breakdown
Chevrolet Silverado
The Silverado is by far the most common vehicle we see for this repair, simply because GM sold so many of them. Whether you have a 1500 work truck or a 2500HD diesel, the cluster is the same. Owners searching for 2003 Chevy Silverado instrument cluster repair or 2005 Chevy Silverado instrument cluster repair will find that the symptoms and the fix are identical across all model years and engine options. Our Silverado instrument cluster repair service covers every Silverado from 2003 through 2006.
Chevrolet Tahoe
The Tahoe uses the exact same cluster as the Silverado. Because Tahoes tend to be family vehicles, owners often notice the gas gauge issue first since they are more likely to be tracking fuel usage closely. If you need a Chevy Tahoe instrument cluster repair, the process is exactly the same as the Silverado. Our Tahoe instrument cluster repair service fixes all of the symptoms listed in this guide.
Chevrolet Suburban
Suburbans share the same cluster hardware as every other GMT800 vehicle. The Suburban's longer trips and higher mileage usage means the stepper motors often see more wear. If you are looking for a suburban instrument cluster repair, we have you covered. Our Suburban instrument cluster repair service replaces all stepper motors and addresses the display failures.
Chevrolet Avalanche
The Avalanche is a unique truck, but its instrument cluster is anything but unique. It is the same part used across the entire GMT800 lineup. If your 2004 Chevy Avalanche instrument cluster is giving you trouble, the repair is straightforward. Our Avalanche instrument cluster repair service covers every year from 2003 to 2006.
GMC Sierra
The Sierra is mechanically the twin of the Silverado, and the instrument cluster is no exception. Owners looking for a 2004 GMC Sierra instrument cluster or 2005 GMC Sierra instrument cluster fix will find that the problem and solution are identical to the Chevy side. A 2004 GMC Sierra instrument cluster not working is the same stepper motor failure that affects every other truck on this list. Our Sierra and Yukon instrument cluster repair service covers all Sierra 1500, 2500, and 3500 models.
GMC Yukon and Yukon XL
The Yukon and Yukon XL (including the Denali trim) use the same cluster as the Sierra. The 2003 GMC Yukon instrument cluster is the same part number family as the 2006 Yukon Denali. Whether you have the base SLE or the top-of-the-line Denali, the repair is the same. Our Sierra and Yukon repair service handles them all.
Our Repair Process
When your cluster arrives at our shop, we start with a full diagnostic inspection of the circuit board, stepper motors, and display components. We identify every failure point, not just the obvious ones.
We then replace all seven stepper motors with upgraded units that are more durable than the originals GM used. Even if only your speedometer has failed, we replace every motor in the cluster. The ones that still work today are built from the same materials and are heading toward the same failure. Replacing them all eliminates the chance of a repeat failure down the road.
We also repair the digital display for the odometer and gear indicator, address any cracked solder joints on the board, and thoroughly test every gauge and function before shipping the cluster back. Your original mileage and settings are preserved. No dealer visit or reprogramming is required after installation.
Every repair includes a 24-hour turnaround and a lifetime warranty on all repaired functions.
LED Backlighting Upgrade
While your cluster is apart for repair, you have the option to upgrade the stock incandescent backlighting to LEDs for an additional $30. The factory bulbs produce a dull, yellowish glow that fades over time. LED backlighting is brighter, more even, and lasts significantly longer.
You can choose from four color options: Blue, Green, Red, or Cool White. This is a popular upgrade that gives the cluster a modern, clean look while also making it easier to read at night. The LED upgrade is available on all five of our GMT800 cluster repair services.
Frequently Asked Questions
How do I know if my stepper motors are bad?
If any of your gauges are stuck, reading incorrectly, fluttering, or pegged past their maximum, you have at least one bad stepper motor. The most common first failure is the speedometer, followed by the fuel gauge and tachometer. If one gauge has failed, the rest are likely close behind.
Will repair keep my original mileage?
Yes. We repair your original cluster, so the mileage stored in the memory stays exactly as it is. This is one of the biggest advantages of repairing rather than replacing. You avoid odometer discrepancy issues entirely.
Do I need to reprogram the cluster after repair?
No. Because we are repairing your original unit and not replacing it with a different one, no programming or dealer visit is needed. Remove the cluster, send it to us, install it when it comes back. That is it.
How long does the repair take?
We offer a 24-hour turnaround. Most clusters are repaired and shipped back the same day we receive them. Total time from when you ship it to when you get it back depends on your shipping method, but the actual repair is done within one business day.
What does the lifetime warranty cover?
The lifetime warranty covers all repaired functions, including the stepper motors, display, and circuit board work, for as long as you own the vehicle. The LED backlighting upgrade, if selected, is covered for one year.
Can I drive the truck without the instrument cluster installed?
Yes. The truck will start and drive normally without the cluster. You just will not have any gauge readings, warning lights, or odometer tracking while it is out. Most people plan the repair around a day or two when they do not need the vehicle, or they simply drive carefully without gauges for the short turnaround period.
Is this problem covered by any GM recall?
GM issued a special coverage adjustment (not a full recall) for instrument cluster stepper motor failures on some 2003-2006 trucks, but that program expired years ago. At this point, the only option is to repair the cluster yourself or through a service like ours.
Do you repair the cluster for other GM vehicles from this era?
Our repair services cover the Silverado, Tahoe, Suburban, Avalanche, Sierra, and Yukon from 2003 to 2006. If you have a different GM vehicle with a similar cluster issue, contact us and we can let you know if we can help.
Get Your Cluster Fixed
A failing instrument cluster does not mean your truck is done. These are solid, reliable vehicles with hundreds of thousands of miles left in them. The cluster is just one weak spot that GM built into the design, and it is an easy fix.
Stop guessing at your speed and fuel level. Stop worrying about the next gauge that is going to die. Send us your cluster, and we will send it back fully repaired with a lifetime warranty.
