Experiencing issues with your Chevy Corvette C5 climate control display? Does it go dim or completely dead? Before considering a costly replacement, let’s try a simple fix. This guide will walk you through the steps to repair the display by resoldering loose resistors.
Tools Needed:
- Soldering iron
- Solder
- 5mm socket wrench
- Pry tool
- Tweezers
Step-by-Step Repair Guide
Step 1: Remove the 8 Bolts
1. Unscrew the 4 Bolts: Start by using a 5mm socket wrench to unscrew the four bolts holding the two plastic pieces in place. (Refer to Image 1)
2. Pry Open the Unit and Unscrew 4 More Bolts: Gently pry open the unit to access the circuit boards. Use a 5mm socket wrench to unscrew the four bolts holding the circuit board in place. (Refer to Image 2)
Step 2: Access the Circuit Board
1. Work on the Marked Board: Identify the correct circuit board to work on. The board with the red X should not be touched. Focus on the marked board instead. (Refer to Image 3)
2. Remove the circuit board: Carefully pry and remove the circuit board from the black casing.
Step 3: Identify the Board to Work On

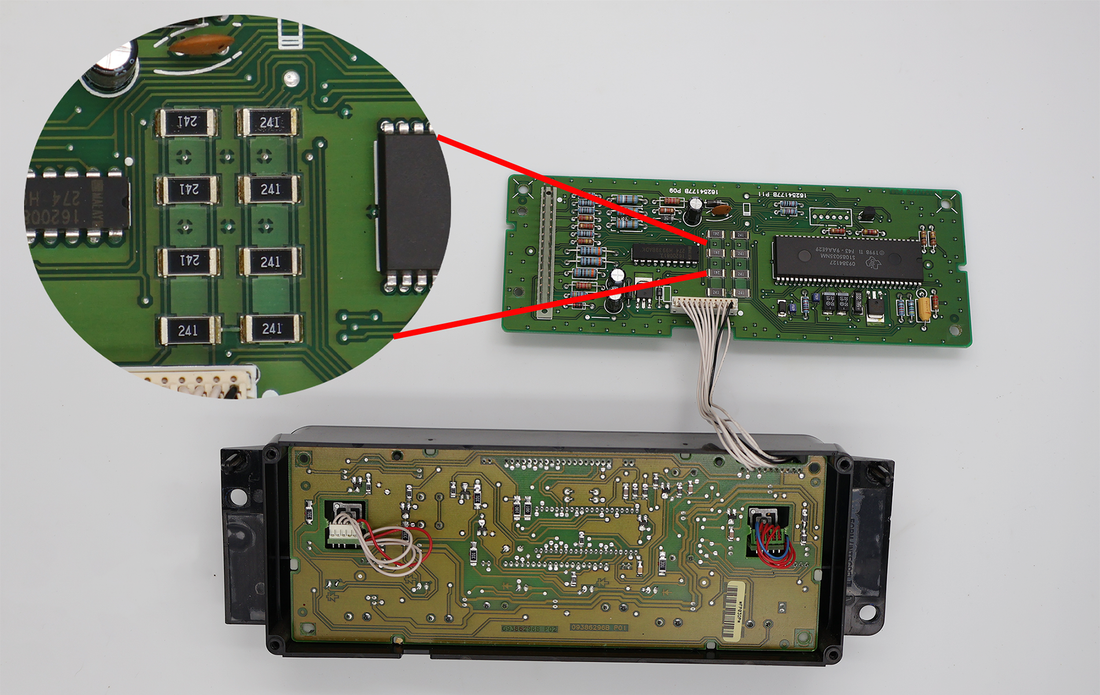

1. Locate the 8 Loose Resistors: These resistors often heat up over time, causing the solder to dry and crack, leading to a loose connection. This is why your display may go dim or completely dead. (Refer to Image 4)
Step 5: Resolder the Resistors
1. Resolder the 8 Resistors: Carefully resolder the 8 resistors to ensure a solid connection. Use fresh solder to ensure durability. (Refer to Image 5)
Step 6: Reassemble the Unit
1. Screw Back the Circuit Board: Start by screwing back the four bolts that hold the circuit board. (Refer to Image 6)
2. Reassemble the Unit: Finally, put the unit back together and secure it with the four bolts you initially removed. (Refer to image 7)
Additional Tips
Soldering Basics: If you’re new to soldering, here are a few quick tips:
- Heat the Joint, Not the Solder: Place the soldering iron tip against the joint and then apply solder to the joint, not directly to the iron.
- Ensure a Clean Joint: Make sure the connection is shiny and smooth, indicating a good bond.
Conclusion
With these simple steps, you can save yourself the cost and hassle of replacing the entire climate control unit. By resoldering the loose resistors, your display should be back to working perfectly.
If you're unsure about handling the repair yourself, we can repair it for you. Click this link for our repair service, which comes with a 24-hour turnaround and a lifetime warranty.
