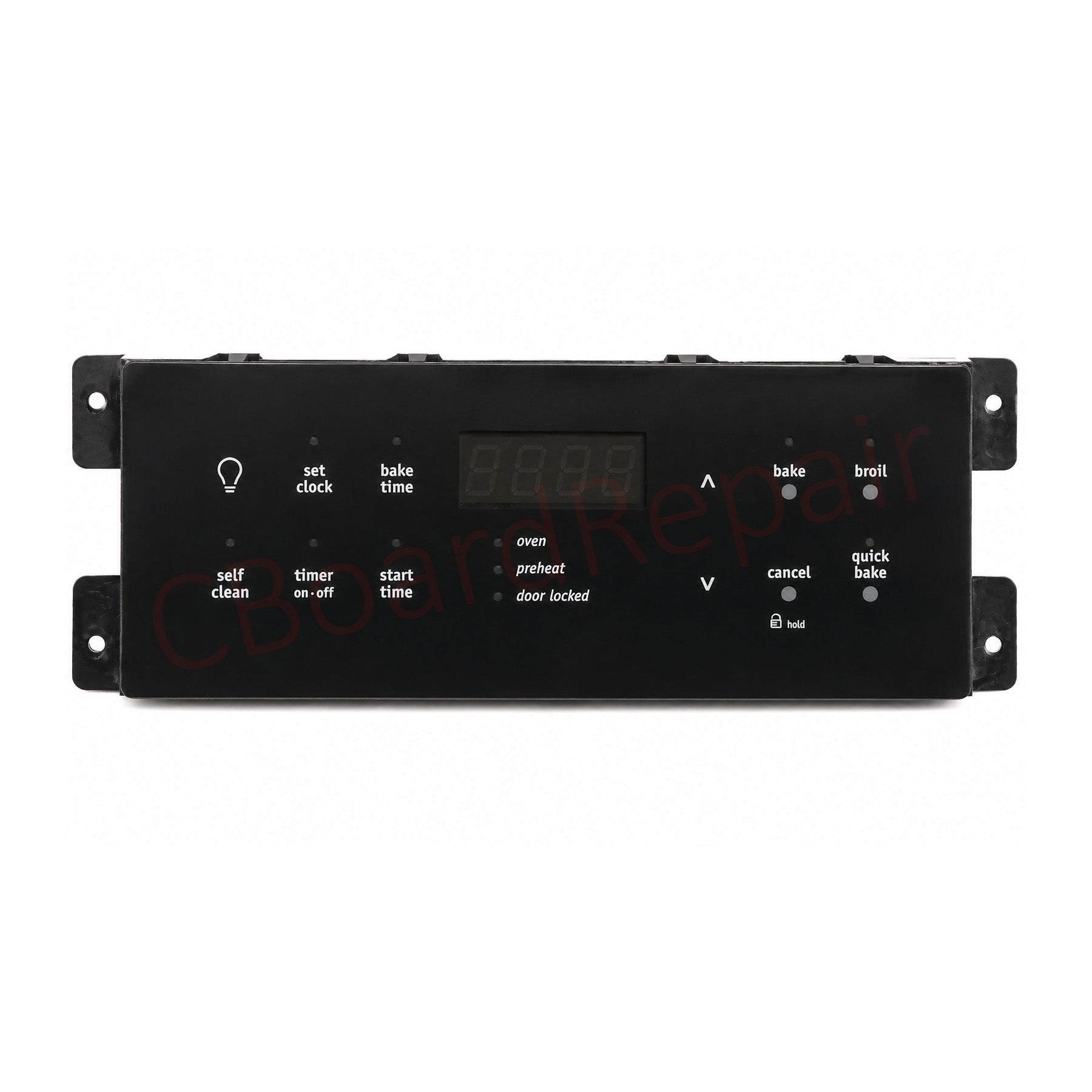

316557260 Oven Control Board Repair Service

If your Frigidaire range is throwing error codes, refusing to bake or broil, or running hot no matter the setting, the control board is almost always the cause. Part number 316557260 is the main control board used across a wide range of Frigidaire and Kenmore electric ranges, and it fails in the same predictable ways year after year.

This is a mail-in service. Send us your board, we rebuild it at the component level, and it ships back within 2-3 business days. No reprogramming, no guesswork, no used board with an unknown history.

Symptoms This Repair Fixes

• Error Codes: Any fault code tied to the control board, including codes that clear after a power cycle and then come back.
• No Bake, No Broil: The board fails to energize the bake or broil relay, so the element never heats even though the display shows the oven running.
• Intermittent Operation: The oven works some days and not others, which points to a solder joint or relay contact that is failing but not fully broken yet.
• Oven Runs Too Hot or Will Not Shut Off: A stuck or shorted relay keeps the heating element powered continuously. Unplug the range and stop using it until the board is repaired.
• Oven Does Not Reach Temperature: The board struggles to hold a consistent bake relay signal, so the oven undershoots the setpoint and never fully preheats.

Why This Board Fails

The 316557260 board sits close to the oven cavity and takes on the same heat cycling as the rest of the range. Every bake and broil session pushes it through a heat up and cool down cycle, and that expansion and contraction wears on the internal components over time.

The relays that control bake and broil power take the most abuse and eventually stop closing reliably or stick closed entirely. The capacitors in the power supply section dry out from years of ambient heat, which shows up as erratic error codes and display glitches. Cracked solder joints around the relay pins are the other common culprit, developing hairline fractures after thousands of heat cycles.

What We Do

We do not just reflow a few suspect joints and call it done. Failed relays get replaced with higher-rated versions, degraded capacitors get swapped for new ones, and every solder joint gets inspected and reworked as needed.

Once repaired, we bench test the board under simulated load to confirm the relays switch cleanly and the output stays stable before it ships. Your original board comes home rebuilt, not swapped for an unknown used unit.

Warranty Information

This oven control board repair service includes a 1-year warranty. Coverage includes error code recurrence, relay failures, and component-level faults caused by the original failure. For the first 3 months after your repair is returned, we cover warranty shipping both ways. After 3 months, the customer covers shipping to us for warranty service. The warranty is non-transferable and is tracked by a unique warranty number assigned to your repair.
